Quickstart

This guide will help you get up-and-running with Curvesim.

First, make sure that:

Hello world

Before digging into more interesting examples, let’s check the installed package can run without issues. In the console, run:

$ python3 -m curvesim
[INFO][13:58:06][curvesim.price_data.sources]-27988: Fetching CoinGecko price data...
[INFO][13:58:07][curvesim.pool_data.cache]-27988: Fetching historical volume...
[INFO][13:58:07][curvesim.network.subgraph]-27988: Volume end date: 2023-05-18 00:00:00+00:00
[INFO][13:58:33][curvesim.pipelines.utils]-27988: Volume Multipliers: 3.18995731844421e-05
[INFO][13:58:33][curvesim.pipelines.arbitrage]-27988: [3Crv] Simulating with {'A': 100, 'fee': 3000000}
[INFO][13:58:43][curvesim.pipelines.arbitrage]-27988: [3Crv] Simulating with {'A': 100, 'fee': 4000000}
[INFO][13:58:52][curvesim.pipelines.arbitrage]-27988: [3Crv] Simulating with {'A': 1000, 'fee': 3000000}
[INFO][13:59:00][curvesim.pipelines.arbitrage]-27988: [3Crv] Simulating with {'A': 1000, 'fee': 4000000}
Elapsed time: 62.90428018569946

Fetch a pool from a chain

If you know the address of the pool for the chain you want, you can easily start interacting with it. Curvesim allows you to introspect on the pool’s state and use its functions without submitting actual transactions on chain.

Begin by importing the Curvesim module:

>>> import curvesim

Let’s retrieve the famous 3Pool from Ethereum Mainnet:

>>> pool = curvesim.pool.get("0xbEbc44782C7dB0a1A60Cb6fe97d0b483032FF1C7", "mainnet")

Now, we have a Pool object called pool. Its state is pulled from daily snapshots of the Curve volume subgraph. From this object we can retrieve state information and see the result of pool operations such as swaps or adding liquidity.

The pool interface adheres closely to the live smart contract’s, so if you are familiar with the vyper contract, you should feel at home.

For example, to check various data about the pool:

>>> pool.A
2000

>>> pool.D()
792229855185904089753030799

>>> pool.balances
[221310603060971366741693471,
 209546983349734000000000000,
 361385319858769000000000000]

Notice this is already more convenient than how you would need to query the state on the actual smart contract.

You can also easily check the impact of trades or how many LP tokens you receive from depositing:

# check out-token amount and fees paid
>>> dx = 12345 * 10**6
>>> pool.exchange(2, 1, dx)
(12340177006, 1234141)

# check amount of LP tokens received
>>> amounts = [100 * 10**18, 50 * 10**6, 25 * 10**6]
>>> pool.add_liquidity(amounts)
97835056610971313989

You can change pool parameters and see the impact of trades:

>>> pool.A = 3000
>>> pool.exchange(2, 1, dx)
(12341372567, 1234260)

Let’s try doing something a little more interesting… pull a metapool:

# fetch metapool, MIM-3CRV, off Mainnet
>>> pool = curvesim.pool.get("0x5a6A4D54456819380173272A5E8E9B9904BdF41B", chain="mainnet")
>>> pool.basepool
<CurvePool address=0xbEbc44782C7dB0a1A60Cb6fe97d0b483032FF1C7 chain=mainnet>

# trade between primary stablecoin of the metapool versus a basepool underlyer
>>> pool.exchange_underlying(3, 0, dx)
(12373797212, 4951499)

If you want to dig into the pulled data that was used to construct the pool:

>>> pool.metadata
{'name': 'Curve.fi Factory USD Metapool: Magic Internet Money 3Pool',
 'address': '0x5a6A4D54456819380173272A5E8E9B9904BdF41B',
 'chain': 'mainnet',
 'symbol': 'MIM-3LP3CRV-f',
 'version': 1,
 'pool_type': 'METAPOOL_FACTORY',
 'params': {'A': 2000, 'fee': 4000000, 'fee_mul': None},
 'coins': {'names': ['MIM', '3Crv'],
  'addresses': ['0x99D8a9C45b2ecA8864373A26D1459e3Dff1e17F3',
   '0x6c3F90f043a72FA612cbac8115EE7e52BDe6E490']},
 'reserves': {'D': 145335238128075486893034024,
  'by_coin': [124846609724462731254676673, 20488636137518846234875982],
  'virtual_price': 1008020913339661772,
  'tokens': 144178792527792985122545269},
 'basepool': {'name': 'Curve.fi DAI/USDC/USDT',
  'address': '0xbEbc44782C7dB0a1A60Cb6fe97d0b483032FF1C7',
  'chain': 'mainnet',
  'symbol': '3Crv',
  'version': 1,
  'pool_type': 'REGISTRY_V1',
  'params': {'A': 2000, 'fee': 1000000, 'fee_mul': None},
  'coins': {'names': ['DAI', 'USDC', 'USDT'],
   'addresses': ['0x6B175474E89094C44Da98b954EedeAC495271d0F',
    '0xA0b86991c6218b36c1d19D4a2e9Eb0cE3606eB48',
    '0xdAC17F958D2ee523a2206206994597C13D831ec7']},
  'reserves': {'D': 792242906269082651836451728,
   'by_coin': [221310603060971366741693471,
    209546983349734012345000000,
    361385319858768987652644961],
   'virtual_price': 1022181723917474348,
   'tokens': 775050940289599852028917731},
  'basepool': None,
  'timestamp': 1667347200,
  'init_kwargs': {'A': 2000,
   'D': 792242906269082651836451728,
   'reserves': [221310603060971366741693471,
    209546983349734012345000000,
    361385319858768987652644961],
   'n': 3,
   'fee': 1000000,
   'fee_mul': None,
   'tokens': 775050940289599852028917731}},
 'timestamp': 1667347200,
 'init_kwargs': {'A': 2000,
  'D': 145335238128075486893034024,
  'reserves': [124846609724462731254676673, 20488636137518846234875982],
  'n': 2,
  'fee': 4000000,
  'fee_mul': None,
  'tokens': 144178792527792985122545269}}

Run an arbitrage simulation for a proposed A parameter

Tuning a pool parameter, such as the amplification coefficient A, can greatly affect the risk-reward profile. The A parameter alters the curvature of the bonding curve, directly impacting the pool’s ability to handle large trades while holding imbalanced reserves.:

>>> import curvesim
>>> mim = "0x5a6A4D54456819380173272A5E8E9B9904BdF41B"
>>> res = curvesim.autosim(mim, chain="mainnet", A=875)
Fetching CoinGecko price data...
Fetching historical volume...
Volume Multipliers:
[9.59195904e-07 9.59195904e-07 9.59195904e-07 2.36911915e-05
 2.36911915e-05 2.36911915e-05]
[MIM-3LP3CRV-f] Simulating with {'A': 875, 'fee': 1000000}
[MIM-3LP3CRV-f] Simulating with {'A': 875, 'fee': 2000000}
[MIM-3LP3CRV-f] Simulating with {'A': 875, 'fee': 3000000}
[MIM-3LP3CRV-f] Simulating with {'A': 875, 'fee': 4000000}

Likely you will want to see the impact over a range of A values. The A and fee parameters will accept either a integer or iterables of integers; note fee values are in units of basis points multiplied by 10**6.:

>>> res = curvesim.autosim(mim, chain="mainnet", A=range(500, 1500, 250), fee=4000000)
Fetching CoinGecko price data...
Fetching historical volume...
Volume Multipliers:
[9.59195904e-07 9.59195904e-07 9.59195904e-07 2.37521074e-05
 2.37521074e-05 2.37521074e-05]
[MIM-3LP3CRV-f] Simulating with {'A': 750, 'fee': 4000000}
[MIM-3LP3CRV-f] Simulating with {'A': 1000, 'fee': 4000000}
[MIM-3LP3CRV-f] Simulating with {'A': 1250, 'fee': 4000000}
[MIM-3LP3CRV-f] Simulating with {'A': 500, 'fee': 4000000}

Run an arbitrage simulation varying multiple parameters

You may also want to see how different A and fee parameters perform in conjuction. If you input multiple iterables for parameters, each possible combination of parameters is simulated:

>>> res = curvesim.autosim(mim, chain="mainnet", A=[100, 1000], fee=[3000000, 4000000])
Fetching CoinGecko price data...
Fetching historical volume...
Volume Multipliers:
[9.59195904e-07 9.59195904e-07 9.59195904e-07 2.37521074e-05
 2.37521074e-05 2.37521074e-05]
[MIM-3LP3CRV-f] Simulating with {'A': 100, 'fee': 3000000}
[MIM-3LP3CRV-f] Simulating with {'A': 100, 'fee': 4000000}
[MIM-3LP3CRV-f] Simulating with {'A': 1000, 'fee': 3000000}
[MIM-3LP3CRV-f] Simulating with {'A': 1000, 'fee': 4000000}

Results

The simulation returns a SimResults object (here, res) that can plot simulation metrics or return them as DataFrames.

Plotting

The plot() method is used to generate and/or save plots:

#Plot results using Altair
>>> res.plot()

#Save plot results as results.html
>>> res.plot(save_as="results.html")

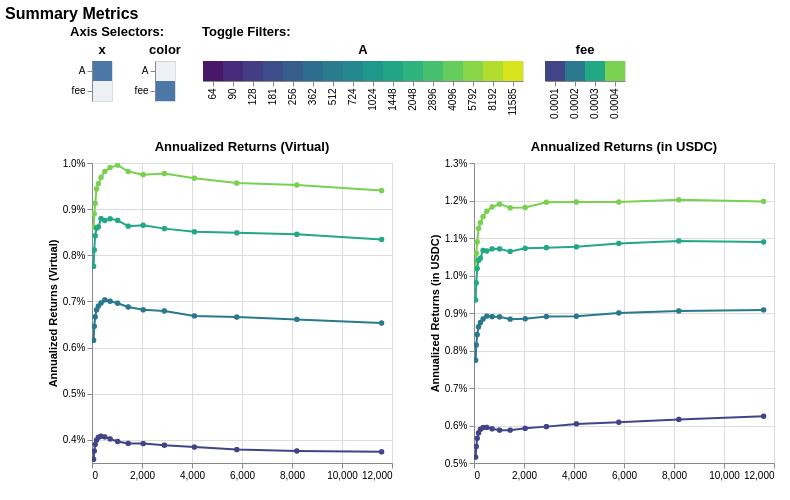

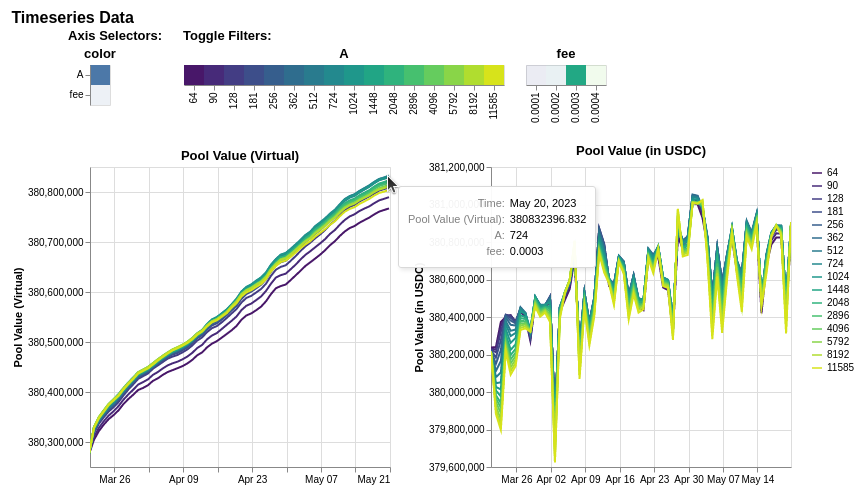

Screenshots of resulting plots (truncated):

Summary statistics Timeseries data

Metrics

The summary method returns metrics summarizing each simulation run:

>>> res.summary()
metric pool_value_virtual         pool_value  ...   pool_volume price_error
stat   annualized_returns annualized_returns  ...           sum      median
0                0.003580           0.005156  ...  2.286297e+09    0.000669
1                0.006158           0.007741  ...  1.966299e+09    0.000600
2                0.007760           0.009348  ...  1.652965e+09    0.000775
3                0.008611           0.010200  ...  1.377299e+09    0.000956
4                0.003760           0.005439  ...  2.400174e+09    0.000777
..                    ...                ...  ...           ...         ...
59               0.009523           0.012018  ...  1.521524e+09    0.001155
60               0.003742           0.006247  ...  2.388746e+09    0.001063
61               0.006533           0.009082  ...  2.084530e+09    0.000915
62               0.008344           0.010894  ...  1.775963e+09    0.000974
63               0.009402           0.011974  ...  1.502494e+09    0.001133

To include the parameters used in each run, use the full argument:

>>> res.summary(full=True)
        A             D  ...  pool_volume sum  price_error median
0      64  3.802712e+08  ...     2.286297e+09            0.000669
1      64  3.802712e+08  ...     1.966299e+09            0.000600
2      64  3.802712e+08  ...     1.652965e+09            0.000775
3      64  3.802712e+08  ...     1.377299e+09            0.000956
4      90  3.802712e+08  ...     2.400174e+09            0.000777
..    ...           ...  ...              ...                 ...
59   8192  3.802712e+08  ...     1.521524e+09            0.001155
60  11585  3.802712e+08  ...     2.388746e+09            0.001063
61  11585  3.802712e+08  ...     2.084530e+09            0.000915
62  11585  3.802712e+08  ...     1.775963e+09            0.000974
63  11585  3.802712e+08  ...     1.502494e+09            0.001133

The data method returns metrics recorded at each timestamp of each run:

>>> res.data()
       run                 timestamp  ...      pool_volume  price_error
0        0 2023-03-21 23:30:00+00:00  ...  15206414.533633     0.005310
1        0 2023-03-22 00:30:00+00:00  ...    7278720.40969     0.002029
2        0 2023-03-22 01:30:00+00:00  ...   6125207.553072     0.000100
3        0 2023-03-22 02:30:00+00:00  ...    7066251.03295     0.000100
4        0 2023-03-22 03:30:00+00:00  ...   3512782.000945     0.000299
...    ...                       ...  ...              ...          ...
93755   63 2023-05-21 19:30:00+00:00  ...    879436.331564     0.000893
93756   63 2023-05-21 20:30:00+00:00  ...              0.0     0.001091
93757   63 2023-05-21 21:30:00+00:00  ...    720837.826971     0.000800
93758   63 2023-05-21 22:30:00+00:00  ...    445967.506177     0.001414

The data method also accepts the full argument. However, the output may be prohibitively large:

>>> res.data(full=True)
           A             D     fee  ...    pool_fees      pool_volume  price_error
0         64  3.802712e+08  0.0001  ...  1522.608454  15206414.533633     0.005310
1         64  3.802712e+08  0.0001  ...   727.480283    7278720.40969     0.002029
2         64  3.802712e+08  0.0001  ...   614.494463   6125207.553072     0.000100
3         64  3.802712e+08  0.0001  ...   707.021149    7066251.03295     0.000100
4         64  3.802712e+08  0.0001  ...   352.544017   3512782.000945     0.000299
...      ...           ...     ...  ...          ...              ...          ...
93755  11585  3.802712e+08  0.0004  ...   351.854745    879436.331564     0.000893
93756  11585  3.802712e+08  0.0004  ...     0.000000              0.0     0.001091
93757  11585  3.802712e+08  0.0004  ...   288.500150    720837.826971     0.000800
93758  11585  3.802712e+08  0.0004  ...   178.639272    445967.506177     0.001414
93759  11585  3.802712e+08  0.0004  ...   156.525641    391060.986022     0.000906

[93760 rows x 13 columns]

Fine-tuning the simulator

Other helpful parameters for autosim() are:

  • src: data source for prices and volumes. Allowed values are:

    • “coingecko”: CoinGecko API (free); default

    • “local”: local data stored in the “data” folder

  • ncpu: Number of cores to use.

  • days: Number of days to fetch data for.

  • vol_mode: Modes for limiting trade volume

    • 1: limits trade volumes proportionally to market volume for each pair

    • 2: limits trade volumes equally across pairs

    • 3: mode 2 for trades with meta-pool asset, mode 1 for basepool-only trades

  • test: Sets A and fee params to a small set of values for testing purposes.

Tips

Pricing data

By default, Curvesim uses Coingecko pricing and volume data. To replace the no longer available Nomics service, we expect to onboard another data provider and also provide an option to load data files.

Note on CoinGecko Data

Coingecko price/volume data is computed using all trading pairs for each coin, with volume summed across all pairs. Therefore, market volume taken from CoinGecko can be much higher than that of any specific trading pair used in a simulation. This issue is largely ameloriated by our volume limiting approach, with CoinGecko results typically mirroring results from pairwise data, but it should be noted that CoinGecko data may be less reliable than more granular data for certain simulations.

Parallel processing

By default, Curvesim will use the maximum number of cores available to run simulations. You can specify the exact number through the ncpu option.

For profiling the code, it is recommended to use ncpu=1, as common profilers (such as cProfile) will not produce accurate results otherwise.

Errors and Exceptions

All exceptions that Curvesim explicitly raises inherit from curvesim.exceptions.CurvesimException.


Ready for more? Check out the advanced section.
